모델명: AVK309
본 제품에 대한 구매전후 기술문의는 판매처가 아닌 아래 전용 기술지원사이트에서 이루어집니다.
구매처에 관계없이, 기술난이도가 높은 상품이므로 해당 사이트를 이용바랍니다.
http://avlogic.co.kr/ (기술지원 전용 홈페이지)
This is a HDMI to YPbPr + R/L Adapter. It converts HDMI input into analog YPbPr video and R/L audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional YPbPr monitors or projectors.
It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
This HDMI to YPbPr Adapter has many features that enable it to perform in a superior manner. Among those features you will find:
l Easy to Use: Install in seconds, no need of setting.
l Conversion: It could convert complete HDMI into YPbPr video output.
l Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.
l Supports Analogue Video output up to UXGA and 1080p.
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Input connection |
HDMI A female(19pin) |
|
Output connection |
YPbPr, R/L |
|
HDMI video input format |
480i/576i/480p/576p/720p/1080i/1080p |
|
YPbPr video output format |
480i/576i/480p/576p/720p/1080i/1080p |
|
Audio output format |
2 channel LPCM |
|
Operating Frequency |
|
|
|
50/60Hz |
|
Input Video Amplifier Bandwidth |
1.65Gpbs/165MHz |
|
Mechanical |
|
|
Length |
1M |
|
Weight(Net) |
74g |
|
Warranty |
|
|
Limited Warranty |
1 Year |
|
Environmental |
|
|
Operating Temperature |
|
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
|
|
Storage Humidity |
5% to 95 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
USB Power |
|
Power consumption (Max) |
0.75W |
|
User Manual |
English Version |
Note: Specifications are subject to change without notice.
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
l Main unit.
l User's Manual

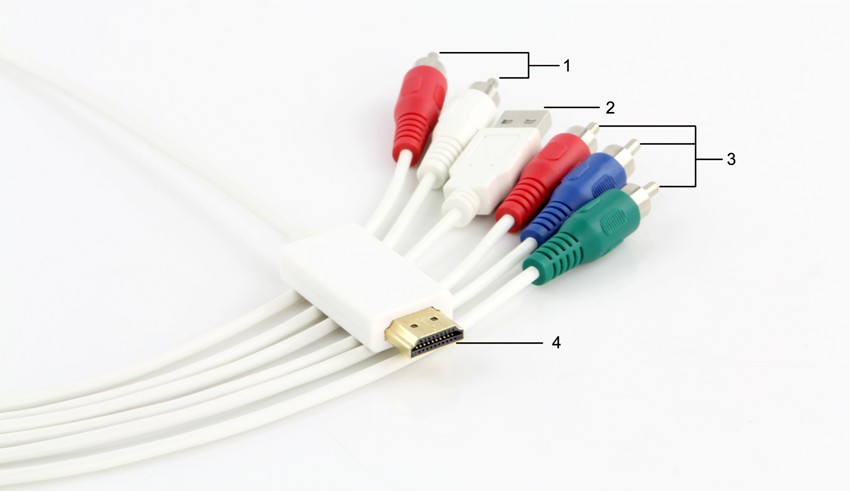

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
Interface function:
Connect the R/L port to Display or Amplifier Receiver to enjoy audio from the HDMI sources.
2, USB
Connect this port to device that can supply power for the product.
3, YPbPr
Connect these ports to Display to enjoy the video from the HDMI sources.
Connect this port to HDMI sources, such as DVD, PC.
1) Connect the USB interface for power supply (It must be the first step).
2) Connect the HDMI interface with HDMI source.
3) Connect the R/L interface and YPbPr interface with the Display.
Attention: Insert / Extract cable gently.
Note：The following two problems may existing when using this HDMI to YPbPr Adapter.
1. Some traditional CRT Displays may not work after connected with this Converter. This mainly caused by these Displays only supporting 480i and 576i YPbPr interlaced resolution. Therefore, we suggest to choose LCD Display or those can support YPbPr CRT Displays.
2. Some connected Displays may have no image after setting the resolution of HDMI source at 1080P. This not caused by our products but YPbPr Channel of Displays not supporting resolution at 1080P.
